A selection of Yarn Tension Meters to meet your requirements

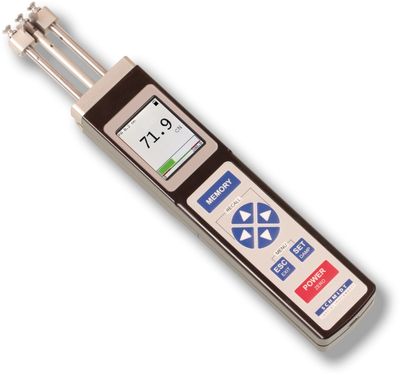

DT Series Tension Meter: A popular electronic tension meter for many applications.
Two models available, the DTS is the basic unit for many applications, the DTX provides detailed process data and analysis with interface for PC connection. The DT Series Yarn Tension Meter has many features including thickness compensator to reach highest accuracy, the diameter of the material to be measured can be set with a wheel and be displayed in the screen. The filament guide and roller shifting mechanism ensures easy acquisition of the running material. The Yarn Tension Meter allows user to take high speed data samples, with a flexible menu set-up to meet operators demands.
Additional Features for DTX
The DTX series has a memory for 60,000 readings and a USB interface. Four different memory modes can be set, with nine material memory locations for custom calibrations. The meter also includes a WiFi module for wireless communication with a PC. Special purpose versions are available with rollers for tapes and ribbons, or large rollers for fragile filaments and technical fibres.
Key Features
✔ Large, backlight LCD- display: numeric, numeric with live load bar, numeric with
graph (time-tension)
✔ The display rotates in 90° steps for better reading
✔ New, unique, force reduced material catching system
✔ Selectable units of measurement: cN, daN, g, kg, N, lb
Dimensions: 265 x 78.5 x 46mm Weight: 875g Accuracy: ±0.5% FS and ±1 digit or better Power supply: LiPo accumulator (about 40hrs) Temperature Range: 10-45°

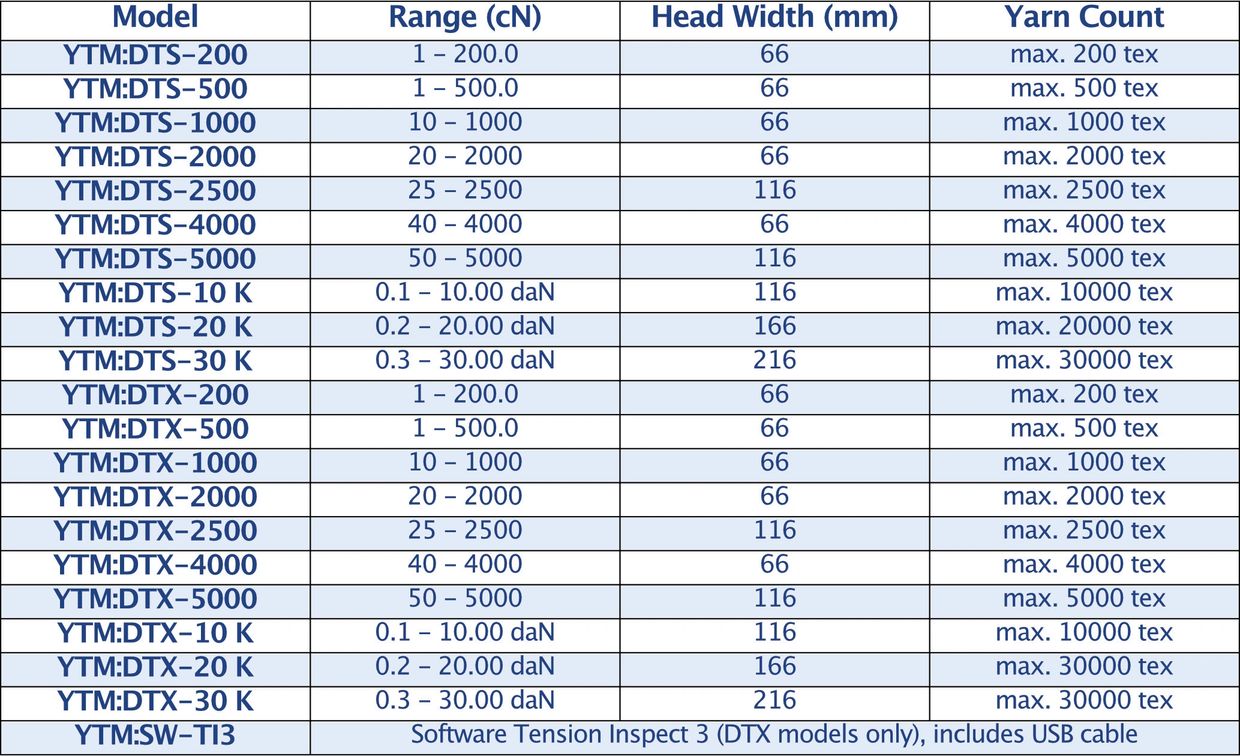

Please find Order Codes below:

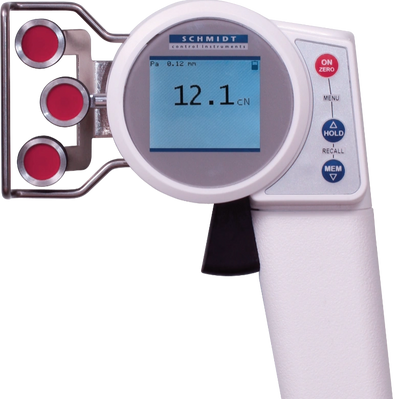

ET SERIES TENSION METER
Electronic Tension Meters for hard to reach and limited access space applic
Two models available, the ETB is the basic unit for many applications, the ETX provides detailed process data and analysis with interface for PC connection. The meter has storage of AVG, MIN, MAX and PEAK tension values which can be recalled in the display. Adjustable electronic damping can be used for better reading when tension is constantly changing. The meter has a display update time of 0.5 seconds and is CE approved (tested for electromagnetic compatability). Display can be reversed for right hand or left hand use.
Additional Features for ETX
The ETX series has USB interfaces for connection to a PC and a memory of max. 4000 tension values split up to 255 series of measurements and statistics (LAST, AVG, MIN, MAX, PEAK- MIN and PEAK-MAX). The meter can be set to four different memory modes.
Special purpose tension meters are also available with ceramic pins for line speeds up to vmax. 6000 m/min.
Key Features
✔ Ball-bearing mounted, V-grooved guide rollers for line speeds up to vmax 2000m/min
✔ Automatic >zero setting< independent to meassuring position
✔ The display can be background lightened for better reading if necessary
✔ Changeable units cN and g
Dimensions: 197 x 58 x 47mm
Weight: 340g
Accuracy: ±0.5% FS and ±1 digit
Power supply: LiPo accumulator (about 60hrs)
Temperature Range: 10-45°

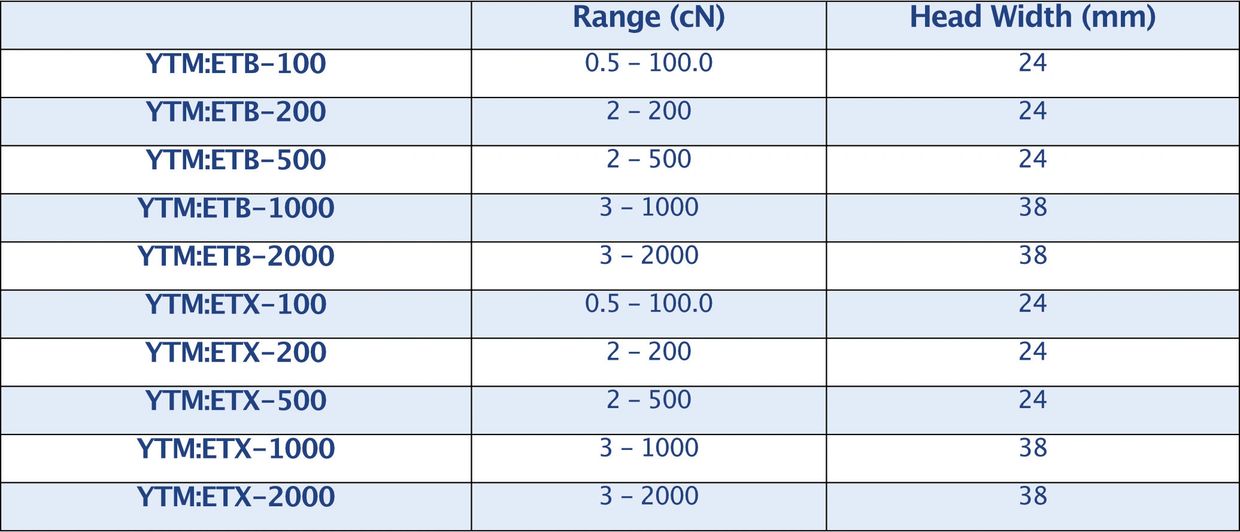

Please find Order Codes below:

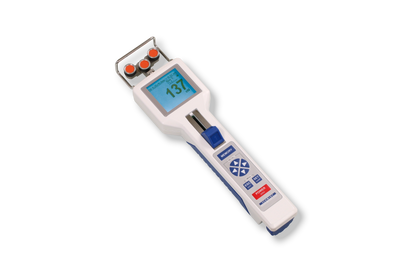

ZE Series Tension Meter
An economical low tension measuring instrument for checking fibres, yarns and fine wires.
This light weight device is available in two models, the ZED has bigger rollers for universal use and the ZEF has a slim filament guide with small guide rollers, ideal for limited access space. The filament guide and roller shifting mechanism ensures easy acquisition of the running material. The tension meter is CE proofed, with interference resistance from static charge. Adjustable electronic damping also provides steady tension readings.
The ZEF series has easy running plastic rollers to measure Spandex (Lycra) filaments.
The housing is made of high strength plastic. Inspection certificate with calibration report optionally available.
Dimensions: 157 x 85 x 32mm
Weight: 200g
Accuracy: ±1% FS and ±1 digit, typical ±0.5% FS
Power supply: LiPo accumulator (about 80hrs)
Temperature Range: 10-45°
Key Features
✔ Everything in operator’s view: the guide rollers, the measured material, the readings
✔ Ball-bearing mounted, V-grooved guide rollers
✔ Automatic >zero setting< independent to measuring position

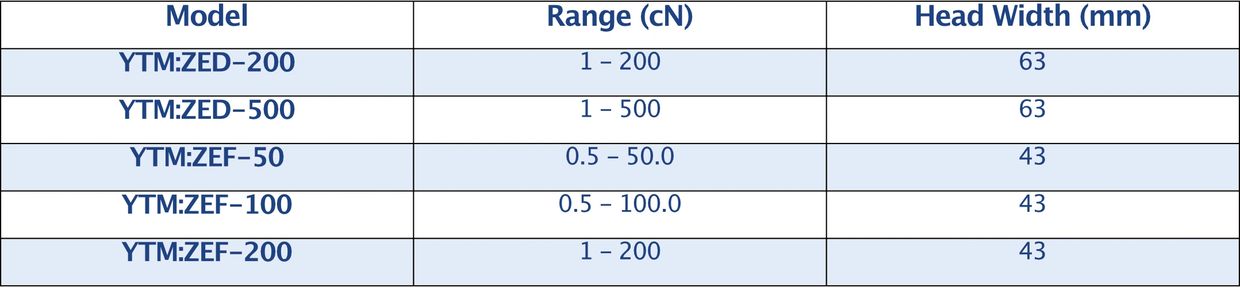

Please find Order Codes below:
Z Series Tension Meter
An economical low tension measuring instrument for checking fibres, yarns and fine wires.
This light weight device is available in two models. The ZD2 has bigger rollers for universal use and the ZF2 has a slim filament guide with small guide rollers, ideal for limited access space. The Z Series Tension Meter is popular in the textile industry, with an analog display for low tensions. The tension meter shows changing and fluctuating tensions fast and enables an optimal process adjustment. The housing is made of high- strength plastic. Inspection certificate with calibration report optionally available.Conforms to DIN EN 10204.
Key Features
✔ Everything in operator’s view: the guide rollers, the measured material, the readings
✔ Ball-bearing mounted, V-grooved guide rollers
✔ Each instrument is individually calibrated for highest accuracy
✔ Large, easy to read scale (54 mm Ø)
Dimensions: 157 x 85 x 32mm
Weight: 200g
Accuracy: ±1% FS pr ±1 graduation on scale
Temperature Range: 10-45°

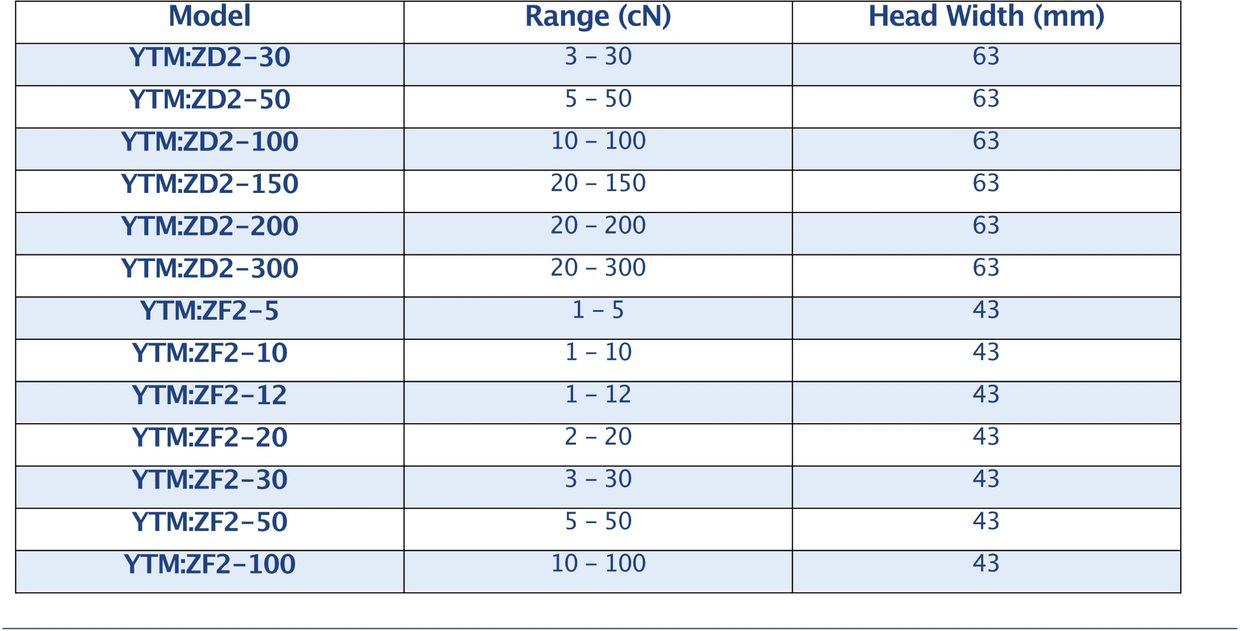

Please find Order Codes below:
