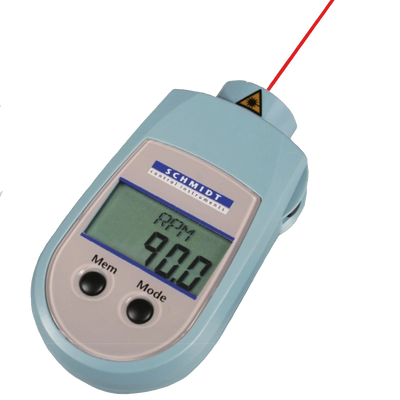

Advanced laser tachometers for contact and non-contact measurement of revolution of engines or shafts as well as surface speed and length. The use of a harmless high-visibility red spot laser beam provides superior performance to traditional type tachometers.
The instruments are supplied with contact adapters, reflective tape, batteries and carry case. The tachometer has automatic and manual memory (MAX, MIN, mean, last and 10 separate readings) or recall in display.
Measuring units: Revolutions - rpm; total rotations (counter) rev; Speed - m/min; feet/ min; yards/min; inch/min; Length - m; inch; yards.
Also available:
Inspection Certificate 3.1 according to EN 10204 with calibration report.
Consumables:
Reflective Tape Set
Order Code: LSR:RFT
Grooved Wheel (6 inch circumference) with special groove for measuring yarn and wire speeds Order Code: LSR:WHL
Dimensions: 150 x 64 x 32mm
Weight (net): approx. 230g
Speed Range: 1.0 - 3810m/min
Accuracy: 0.01% +/- 1 digit
Power Source: 3 x 1.5 V Type AA
Order Code: LSR:104
DigitalLaserTachometerLFT1-1 (pdf)
DownloadThe Channel Data Logger measures, monitors and logs the temperature and relative humidity in buildings and closed rooms. The logger comes with an external humidity sensor for shorter reaction times and a lock to prevent it from being stolen or tampered with. The channel data logger can also log and display dew point values. Other information including adjustable threshold values, breached thresholds and remaining battery power can also be read off the large, clear display. Ensures high level of data security and reliability. The logger has a super-size memory that can save up to 1 million readings and an extended battery life of up to 3 years. This allows longer intervals of data reading, even when the measuring cycles are shorter.
Three software programs are available for this device. Please ask us for further information.
Temperature Measurement
Measuring Range: -20 to +55°C Accuracy: ±0.4°C
Relative Humidity Measurement
Measuring Range: 0 to 100% RH Accuracy: ±2% RH at +25°C
Key Features
✔ Transfer of measuring data via SD card
✔ Temperature measuring range from -20°C to 55°C
✔ Humidity measuring range from 0 to 100% RH
✔ Automatic measuring data backup when battery low
✔ Convenient Excel export functions
Dimensions: 149 x 53 x 27mm - 130g
Protection class: IP54
Battery type: 3 x AAA AlMn batteries or Energizer
Order Code: THL:001
Channel Data Logger LFT2021 (pdf)
DownloadSuitable for manufacturing and educational purposes.

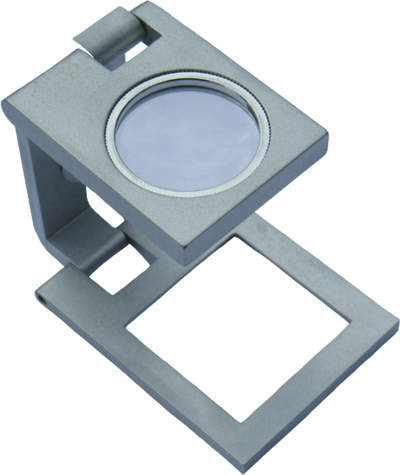

The Wira Linen Tester is a convenient tool for inspecting the quality of woven fabrics and measuring the number of weft and warp threads. The Linen Tester is manufactured with high-definition biconvex glass lens for better performance. This allows fabrics to be clearly inspected. Brass, chrome-plated casing ensures durability. The mount has a matte finish. A carry case can be ordered as an accessory.
Lens Material: Optically round silicate glass.
Lens Size: approx. 1.5cm
Key Features
✔ Easy and effective inspection tool
✔ High quality lens
✔ Available in a variety of sizes
✔ Durable housing
✔ Light and portable
Order Codes
PGC:001: Size Ø 11mm, Magnification 48dpt/12x, Cut-out 10x10mm, Height 23mm
PGC:002: Size Ø 12mm, Magnification 40dpt/10x, Cut-out 15x15mm, Height 27mm
PGC:003: Size Ø 15mm, Magnification 32dpt/8x, Cut-out 20x20mm, Height 30mm
PGC:004: Size Ø 20mm, Magnification 24dpt/6x, Cut-out 25x25mm, Height 42mm
PGC:005: Size Ø 28mm, Magnification 20dpt/5x, Cut-out 30x30mm, Height 53mm
Linen Tester LFT2021 (pdf)
DownloadFeaturing LED touch technology and 12 built-in applications.

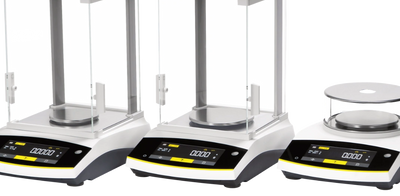

For accurate weighing results you can trust time after time, guaranteed via monothilic weigh cell technology. The following balances are suitable for a range of different tasks within the textile laboratory.
Order Codes
LBE:001: Model Analytical Laboratory Balance
Capacity 60g
Readability 0.1mg
Pan Size Ø 90mm
Draft Shield with Sliding Doors ✔
LBE:002: Model Analytical Laboratory Balance
Capacity 120g
Readability 0.1mg
Pan Size Ø 90mm
Draft Shield with Sliding Doors ✔
LBE:003: Model Analytical Laboratory Balance
Capacity 220g
Readability 0.1mg
Pan Size Ø 90mm
Draft Shield with Sliding Doors ✔
LBE:004: Model Analytical Laboratory Balance
Capacity 420g
Readability 1mg
Pan Size Ø 120mm
Draft Shield with Sliding Doors ✔
LBE:005: Model Analytical Laboratory Balance
Capacity 620g
Readability 1mg
Pan Size Ø 120mm
Draft Shield with Sliding Doors ✔
LBE:006: Model Analytical Laboratory Balance
Capacity 820g
Readability 0.01g
Pan Size 182 x 182mm
Draft Shield with Sliding Doors ✗
LBE:007: Model Analytical Laboratory Balance
Capacity 2200g
Readability 0.01g
Pan Size 182 x 182mm
Draft Shield with Sliding Doors ✗
For specific requirements, other ranges are available.
Max. Power Consumption: 4 Watts
Languages: English, German, French, Italian, Spanish, Portuguese, Russian, Polish
Laboratory Balance LFT2021 (pdf)
DownloadA indispensable tool for colour quality control and comparisons of colour variation.

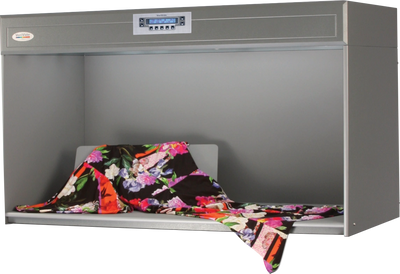

An indispensable tool for colour assessment, colour quality control and comparison of colour variation. The stability of our light sources give excellent viewing conditions for reliable colour critical decisions under standardised lighting. This ensures agreement and consistency through global supply chains, helping to highlight product quality issues, such as metamerism, at the earliest opportunity.
Industry standard light cabinets designed to match the viewing conditions and spectral qualities of the standard illuminants as specified according to the ISO/CIE standards. They also conform to all major international standards for visual evaluation, including ASTM, AS, BSI, BIN, and ISO. Backlit LCD control panel with various features: servicing indicator, auto sequence, warm-up, power save and data storage facility.
Observation tables and benches can be supplied as accessories. Diffusers and electronically controlled dimmable options also available.
Order Code: CAC 120
Dimensions
External Dimensions - 1290 Width, 755 Height, 620 Depth
Viewing Cavity - 1260 Width, 570 Height, 585 Depth
Order Code: CAC 60
Dimensions
External Dimensions - 710 Width, 545 Height, 420 Depth
Viewing Cavity - 680 Width, 360 Height, 380 Depth
Order Code: CAC60-5
Dimensions
External Dimensions - 710 Width, 545 Height, 540 Depth
Viewing Cavity - 680 Width, 360 Height, 495 Depth
Order Code: CAC-LED- 60-5
Dimensions
External Dimensions - 710 Width, 545 Height, 540 Depth
Viewing Cavity - 680 Width, 360 Height, 495 Depth
LED Light Cabinets are available. More information available upon request.
All industry standard lamps are available. Options of 4 or 5 light sources including: D50, D65, D75, 840, 830, CWF, F, A, and UV, U35 and H also available.
Interior colour options: Grey Munsell N5, N7, VeriVide 5574.
Light Cabinets LFT2021 (pdf)

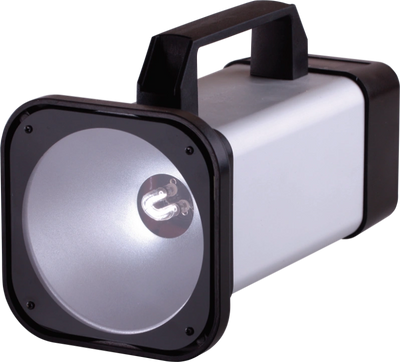

DownloadThe Stroboscope is a compact and portable device with advanced features. Constructed with a rugged metal enclosure, can withstand harsh industrial usage.
With an internal rechargeable battery, the device also includes top and pistol grip handles to aid in portability and flexibility. The Stroboscope has a range of 60-12,000 flashes per minute (FPM), the flash rate is easily adjustable using the dial combined with double-flash-function and half-rate-flash-function buttons, the + and – buttons enable precise setting. The bright LED display aids viewing in poorly lit areas.
A big reflector and powerful Xenon flash tube assures good illumination of the monitoring object, with 550 Lux (depending on flash rate) at a distance of 50cm.
Supplied with rechargeable battery pack.
Key Features
✔ Easy to operate controls
✔ Mains or battery operation with LED display
✔ Detachable pistol-grip handle and mounting possibility on tripod
✔ Xenon-longlife flash tube
✔ Industrial stroboscope with rugged aluminium housing
✔ Certificate of Compliance with the order 2.1 according to EN 10204
Dimensions: 250mm (L) x 120mm (W) x 120mm (H) Weight: 1.25 kg
Power supply: 100 - 240 VAC, external AC adaptor and internal Ni-MH battery
Order Code: STB:002
Stroboscope 002 LFT2021 (pdf)
