Rapid pro Hand Held Moisture Meter
No longer do you need to settle for a ʻone size fits allʼ hand-held meter
The Wira RapidPro is the latest technology for the rapid measurement of moisture. Designed to measure textiles and nonwovens as well as a wide range of associated materials, the hand-held meter offers instant results from an ergonomically designed device.
The RapidPro is available with a variety of sensors for different uses;
• A 2-pin-probe for bales
• An 8-pinprobe for cones
• A mini-can sensor for loose fibre
• Custom probes are available for fabric and other materials
Custom Calibrations
The Wira RapidPro comes with multiple calibrations built in. In addition, custom calibrations of your own materials can be added easily to the unitʼs memory.
Features
✔ Multiple calibrations for a wide range of materials
✔ Customisable for your own unique materials and blends
✔ USB connection for charging and data transfer
✔ Colour touch-screen display
✔ Lightweight and easy to use
Accessories: 2 Prong Probe - RPO:TWO; 8 Prong Probe - RPO:OCT; Can Sensor for Loose Fibre - RPO:CAN; Roller Sensor for Fabrics - RPO:ROL
Order Code: RPO:001
Labcom Moisture & Regain Tester
In association with Streat Drycom
Gives instantaneous moisture readings. Can be configured for use with a wide variety of product types.
The Labcom Moisture & Regain Tester provides immediate, accurate and non- destructive moisture tests, so there are no delays waiting for oven dried laboratory results.
The system is pre-calibrated for typical material types and can be easily calibrated to your own additional materials. The moisture meter can store multiple calibrations enabling an extremely wide range of material types to be tested.
The system incorporates a touch screen display from which direct readings can be taken. In addition, the unit can be linked to a computer in order to store and manage test values. A range of optional sensors is available for the testing of different material types. Now available with optional direct link to weight scale for automatic invoice measurements.
Test Method
A sample to be tested is placed in the appropriate sensor. The operator simply presses the test button on the unit and the result is read directly from the digital display. The system can automatically average a number of samples and each sample can be relayed to a PC.
Options:
• Fibre Sensor: for the testing of loose fibre. Order Code: RMT:FBR
• Cone Sensor: for the testing of yarn on cones. Order Code: RMT:CNE
• Top Sensor for the testing of slivers and top. Order Code: RMT:TOP
• Fabric sensor for testing fabrics. Order Code: RMT:FAB
Key Features
✔ Moisture results in just a few seconds
✔ Non-destructive test method
✔ Measures loose fibre, whole tops and full packages of yarn
✔ Can be used to determine true invoice weight
✔ Ideal for laboratory applications
✔ Can be used independently or linked to a computer
✔ Up to 99 different calibrations stored for different material types
Dimensions (of processor unit):
310mm (W), 180mm(D), 195mm (H) - Weight: 2.9 kg
Order Code: RMT:001
Rapid Regain Dryer
Determines the moisture content, moisture regain and regain correction.
The Rapid Regain Dryer is a quick testing oven able to determine the moisture content (%), the moisture regain (%) and the regain correction (%) of textile materials in accordance to national and international standard. A powerful fan unit draws warm air through the sample and dries in a short period of time. The air is filtered and heated to required temperature and evenly distributed into the drying chamber, keeping the samples soft
and unaltering their physical shape. The Rapid Regain Dryer dries fibre subsamples at 105°C, this temperature can be applied to most textile materials except silk fibres at 140°C. 400g of fibres can be dried in less than 5 minutes, 400g of yarns in less than 7 minutes.
The Rapid Regain Dryer collects all data on its memory for transferring via software or printer.
Key Features
✔ Weighing accuracy of ± 0.01g
✔ Rapid drying of fibres
✔ Complies with UNI, IWTO, ASTM, BISFA and others.
✔ Water vapour diffusion
✔ Samples remain soft and their physical shape unaltered
✔ Replaceable air cleaning filters
Conforms to: EN ISO 2060, ISO 6741, ASTM D1576 and more. Power: 14 KW
Dimensions: 1030 x 630 x 1000 mm
Weight: 170 kg
Order Code: WRR:001

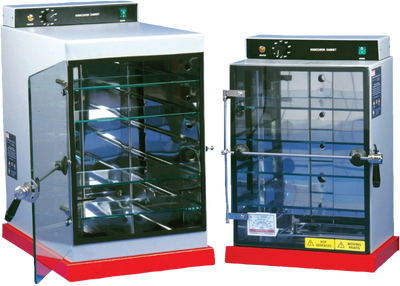

Humidity Cabinet
Maintains a constant humidity for conditioning samples.
Desiccator/humidity cabinet that has been developed with the co-operation of users, resulting in a high quality unit with advanced operational features.
Maintains a constant humidity for conditioning samples. Temperature stability is achieved within one hour of setting.
• Easy setting with a temperature indicated scale.
• Rapid air circulation over the desiccant trayshelves giving swift stabilisation of humidity
and temperature.
• Stainless steel desiccant tray.
• Controlled temperature distribution over each shelf. • RH stability between 0 and 100%
can be obtained using appropriate substances at ambient temperatures.
• Solid state electronic control and switching, gives greater stability and prolongs life of
control circuit.
• Indication of moisture change from direct reading hygrometer.
• Accurate and controllable up to 50°+1°C fluctuation.
Standard Cabinet Size:
Includes 4 plate glass shelves. External(overall):570mm(H),410mm(W), 300mm(D) Internal: 430mm (H), 325mm (W), 185mm (D) Power Consumption: 200 W
Nett Weight: 17kg
Order Code: HMD:001
Deep Cabinet Size:
Includes 4 stainless steel shelves. External(overall):650mm(H),410mm(W), 650mm(D) Internal: 540mm (H), 325mm (W), 555mm (D) Power Consumption: 200 W
Nett Weight: 24kg
Order Code: HMD:002
Water Vapour Permeability Tester
For testing water vapour permeable apparel fabrics
The Water Vapour Permeability Test Machine is designed to measure the resistance of breathable fabrics to water vapour penetration by sealing the fabrics to water filled containers, weighing the container and rotating at 2 RPM in a controlled atmosphere over a specified period of time. The containers are re-weighed to determine the water vapour.
All surface areas that are likely to be exposed to water are constructed in 316 stainless steel and HE-30 aluminium. All rotating shafts run on angular contact bearings for smooth
maintenance free running. Water containers and matching ring tops are engraved for weight indentification. The compact electric drive unit is situated a metre away from the
turntable to prevent any heat from the electric motor affecting the materials under test.
Key Features
✔ Water containers: 8 cup
✔ Stainless steel / aluminium construction
✔ Separate electric drive unit
✔ Conforms to BS 7209 and BS 3424-34 standard
Dimensions: 220mm (H) x 420mm (W) x 420mm (D)
Power consumtpion: 220 - 240 Volts AC, 50 Hz
Order Code:
WVP:001 - 8 cup capacity
