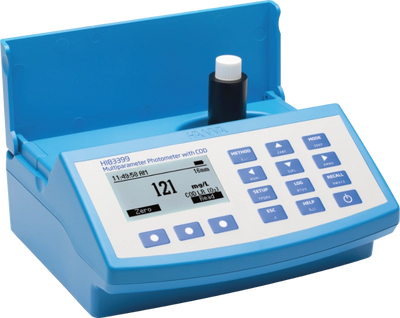

CHEMICAL OXYGEN DEMAND METER
Accurately measure multiple key wastewater quality parameters
One meter can be used for both photometric and pH measurements.
The Chemical Oxygen Demand (COD) parameter is included for industrial and municipal wastewater treatment. The Phosphorous and Nitrogen parameters included are beneficial to municipal wastewater treatment customers that need to monitor their biological and chemical nutrient removal process. This photometer features an innovative optical system that uses LEDS, narrow band interference filters, focusing lens and both a silicon photodetector for absorbence measurement and a reference detector to maintain a consistent light source, which ensures accurate and repeatable photometric readings every time. Two USB ports are provided for transferring data to a flash drive or computer and to use as a power source for the meter. For added convenience and portability the meter can also operate on an internal rechargeable battery. A digital pH electrode input is provided allowing the user to measure pH by a traditional glass electrode. Digital pH electrode not included. Good Laboratory Practice (GLP) allows meter to track calibration information including date, time, buffers used, offset and slope for traceability. CAL Check alerts users to potential problems during calibration process.
Key Features
✔ Built-in reaction timer for photometric measurements
✔ Units of measurement plus chemical form displayed
✔ Result conversion at the touch of a button
✔ pH and temperature measurement with a single probe
✔ Battery status indicator
✔ Error messages
Accessories: For safety, the optional Lab Safety Shield and Test Tube Cooling Rack are strongly recommended.
Dimensions: 206mm x 177mm x 97mm Weight: 1.0kg
Environment: 0 to 50.0°C
Logging Memory: 1000 readings
OrderCode: COD:001

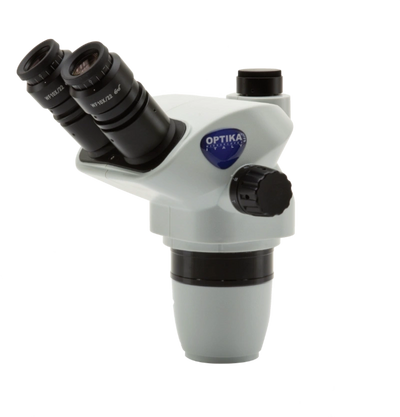

Stereo Zoom Microscope
Simply unmatchable
Stereo Zoom Microscope for Laboratory & Industry.
Modular assembly consisting of Trinocular Head, Focus Mechanism and Pillar Base.
Head: Trinocular (split ratio: 50/50), 360° rotating on all stands and 45° inclined.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/20 mm, high eyepoint, secured by screw and with integrated rubber cups.
Objective: Parfocal achromatic zoom 0.67x...4.5x (zoom factor 6.72:1)
Working distance: 100mm.
Incident Illumination: X-LED3 with white 3.6 W LED (6,300K) with brightness control.
Transmitted Illumination: 12-LED X-LEDT1 disc with white 2 W LED and brightness control. Colour temperature: 6,300K.
External Power Supply as per with MIC:005A.
Base Dimensions: 280 mm (H) x 210 mm (W) x 270 mm (D), 1.90kg
Head Dimensions: 235 mm (H) x 180 mm (W) x 195 mm (D), 1.60kg
Key Features
✔ x6.7 to x45 magnification range
✔ Trinocular head
✔ x10 eyepieces
✔ Fitted with X-LEDT1 incident light and an X-LED3 transmitted light source with dimmer control, frosted glass plate and reversible black/white stage.
Professional Camera, Adaptor and Projection Lens are available as an option.
Order Code: MIC:006
Stereo Zoom Microscope
Modular assembly consisting of Trinocular Head, Focus Mechanism and Pillar Base.
Head: Trinocular (split ratio: 70/30), 360° rotating on all stands and 45° inclined.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/20 mm, high eyepoint, secured by screw and with retractable rubber cups.
Objective: Parfocal achromatic zoom 0.67x...4.5x (zoom factor 6.72:1) with click-stop.
Working distance: 110mm.
Incident Illumination: Two flexible X-LED3 gooseneck arms with white 3.6 W LED/each and brightness control. Iluminance: 170,000lux (at 10cm distance). Colour Temperature: 6,300 K.
Transmitted Illumination: 12-LED X-LEDT1 disc with white 2 W LED and brightness control. Illuminace: 4,000 lux. Colour temperature: 6,300K. External Power Supply as per with MIC:005A.
Base Dimensions: 280 mm (H) x 210 mm (W) x 270 mm (D), 2.40kg
Head Dimensions: 240 mm (H) x 167 mm (W) x 200 mm (D), 1.80kg
Stage: 100 mm dia., Translucent and black/white discs with sample clips.
Key Features
✔ x6.7 to x45 magnification range
✔ Trinocular head rotating 360° and 45° inclined
✔ Widefield eyepieces 10x with field number 23
✔ Incident light source: Two XLED3 light sources, illuminance 170,000lux, colour
temperature 6300K
✔ Input voltage 110/240VAC, 50/60Hz (External power supply provided)
Order Code: MIC:007

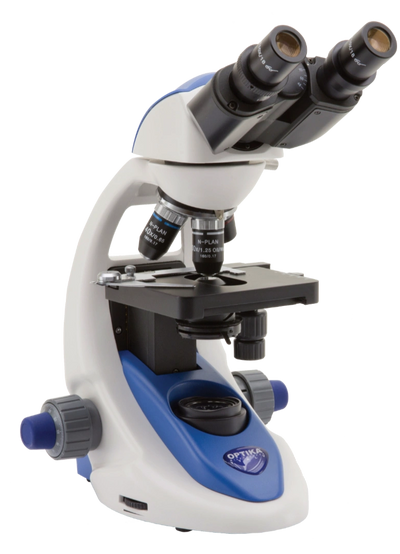

Biological Microscope
Optimum and unparalleled comfort in use
Advanced Biological Microscope with Binocular Head.
Head: Binocular, 30° inclined; 360° rotating.
Dioptric adjustment: Left eyepiece.
Eyepieces: WF10x/18mm, high eyepoint, secured by screw.
Nose piece: Quadruple ball bearings revolving nose piece, reversed.
Objectives:
- N-PLAN objective 4x/0.10
- N-PLAN objective 10x/0.25
- N-PLAN objective 40x/0.65
- N-PLAN objective 100x/1.25 (Oil/Water). All with anti-fungus treatment.
Specimen stage: Mechanical stage, 125x115mm, 70x30mm X-Y movement range. Vernier scale on the two aces, accuracy: 0.1mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: Abbe N.A. 1.25, pre-centered, focuseable, with iris diaphraghm.
Illumination: X-LED2 with white 3 W LED and brightness control. Colour temperature:6,300K.
External Power Supply: 100-240Vac/6 Vdc, Multiplug adaptor (EU, UK, US)
Dimensions: 370mm (H) x 235 mm (W) x 320 mm (D), 6.5 kg.
Key Features
✔ Quadruple nose piece with 4x, 10x, & 40x
✔ 100xRD oil immersion lens
✔ 10x eye pieces
✔ Built in mechanical stage
✔ Fitted with X-LED illumination
✔ 1.25NA abbe condensor
Order Code: MIC:005
Observation mode: Brightfield
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 48 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nose piece: Quintuple revolving nose piece, rotation on ball bearings.
Objectives:
- N-PLAN objective 4x/0.10
- N-PLAN objective 10x/0.25
- N-PLAN objective 40x/0.65
- N-PLAN objective 100x/1.25 (Oil/Water) All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 150x139mm, 75x33 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
Illumination: X-LED3 with white 3.6 W LED (6,300K) with brightness control.
External Power Supply: 100-240 Vac / 6 Vdc, Multiplug adaptor (EU, UK, US)
Dimensions: 405 mm (H) x 235 mm (W) x 370 mm (D), 7.5 kg
Key Features
✔ Quadruple nose piece with 4x, 10x, 40x, & 100x
✔ Widefield eyepieces 10x with field number 20
✔ Built in sliding stage
✔ X-LED3 light intensity controls, LED power: 3.6w
✔ 1.25NA Abbe Condensor, centering system
Order Code: MIC:005A

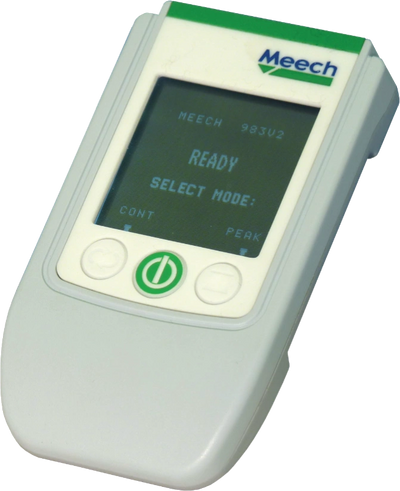

Digital Static Locator
Lightweight, pocket sized device
Can measure fluctuation in charge levels and/or the highest level detected.
The Digital Static Locator measures static charges from -200V to 200kV at a distance of 150mm and indicates the polarity as positive or negative.
Used to investigate the nature and cause of the static electricity problem, this instrument is also invaluable for monitoring the performance of static control equipment in operation.
The pocket-sized instrument is simple to operate. The instrument is pointed into open air away from the static charge and the button is pressed to activate and zero the instrument. With the button still pressed it is then pointed toward the static charge.
Its design enables fast response, low drift and ease of operation. The device can operate in “continuous” or “peak hold” mode to record changes in the level of charge or the highest charge detected respectively. LEDs on the face of the locator are an aid to operational accuracy and act as a visual gauge. The Digital Static Locator is suitable for use by production, maintenance, inspection and quality engineers and on any material where static charge may be an issue.
Key Features
✔ Compact design
✔ Large high contrast LCD screen with digital display
✔ Continuous and Peak hold modes
✔ In-built distance meter
✔ Robust plastic housing
✔ Instrument case
Dimensions: 145mm x 80mm x 25mm,
Weight: 200g
Measurement Range: -200kV to 200v, at a distance of 150mm
Accuracy: +/- 5% of reading, under test conditions.
Battery: 2 x AA alkaline
Order Code: DSL:001

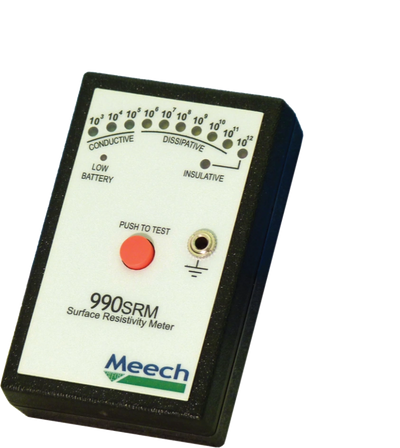

Surface Resistance Meter
Convenient, pocket sized device
For the measurement of surface resistivity and resistance to ground.
The Surface Resistance Meter has a measurement range of 103 to 1012 Ohms per square and an accuracy of ± 1⁄2 Decade. It is a useful tool for testing materials for static charging applications and for diagnosing static electricity related problems.
The hand held device has been designed to provide accurate readings of the surface resistivity. It is easy to use and highly useful for the diagnosis of static control issues.
The chart on the right shows the Tribolectric Series. This is a list of materials, showing which has greater tendency to become positively charged (+) and which have greater tendency to become negatively charged (-). This is a helpful tool to determine which combinations of materials create the most static electricity.
Dimensions: 130mm x 70mm x 25mm
Power Source: 9 Volt PP3 battery
Weight: 170 gms
Test Voltage: Nominally 9 Volts
Temperature Range: (5°C to 46°C)
Storage: (-15°C to +60°C)
Relative Humidity: 0% to 90% (non-condensing)
Resolution: One order of magnitude
Changeover Point: 1⁄2 Decade on a logarithmic scale (3.16 x 10n)
Changeover Accuracy: ± 10%
Accuracy: ±10%
Repeatability: ±5%
Order Code: SRM:001

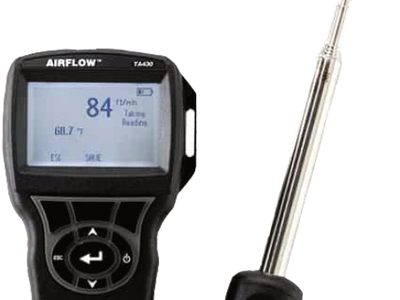

Digital Thermal Anemometer
Lightweight design with accurate results.
Portable Anemometer incorporates air velocity and temperature measurement.
A digital air velocity meter simultaneously measuring temperature and velocity.
The slim, telescopic probe is available with either a rigid (standard) or articulating (optional) all angle tip for outstanding on-site versatility in limited access positions.
Both imperial (ft/min, °F) or metric (m/sec, °C) units can be selected at the press of a button. Velocity Range: 0 to 30 m/s Temperature Range: -18 to 93°C Accuracy: ±3% of reading or ±0.015 m/s. Data Storage Capacity: 12,700+ samples and 100 test IDs
The device has backlit display and an analogue output for using a printer and data logging.
Key Features
✔ Reads m/sec, ft/min, °C and °F
✔ Data storage with min, max, and average
✔ Measures velocity then calculates the volumetric flow
✔ Digital turbulence indicator ✔ Battery powered
Dimensions: 84mm x 178mm x 44mm Weight: 0.27kg
Order Code: DTA:001

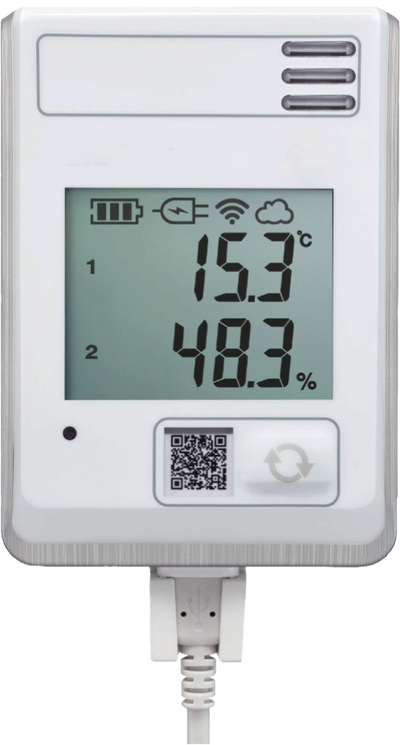

WiFi Temperature and Humidity Data Logger
Easy, versatile and reliable solution for the measurement and monitoring of temperature and humidity
The WiFi Temperature and Humidity Data Logger monitors the temperature and humidity in refridgerated and work storerooms. The temperature and humidity values measured with the integrated probes are reliably recorded over long periods, and transmitted directly to the cloud (online data storage) via wireless LAN. These readings can be viewed anytime, anywhere using an internet-enabled smartphone, tablet or PC.
An alarm function is available to receive immediate warnings by e- mail or SMS (optional) when limit values are violated.
A basic and advanced package are available with the device, depending on the range of functions required. Please ask us for more information about software packages.
Temperature Measurement
Measuring Range: -30 to +50° Accuracy: ±0.5°C
Relative Humidity Measurement
Measuring Range: 0 to 100% RH Accuracy: ±2% RH
Key Features
✔ Access to readings anywhere with any device
✔ Automated temperature and humidity monitoring with integrated probe
✔ Data transfer by wireless LAN
✔ Free online data storage in the cloud
Dimensions: 115 x 82 x 31mm - 250g
Operating temperature: -30 to +50°
Battery type: 4 x AA AlMn batteries, mains unit optional
Order Code: THL:002
